Gallery

Construction of Telescope Foundations

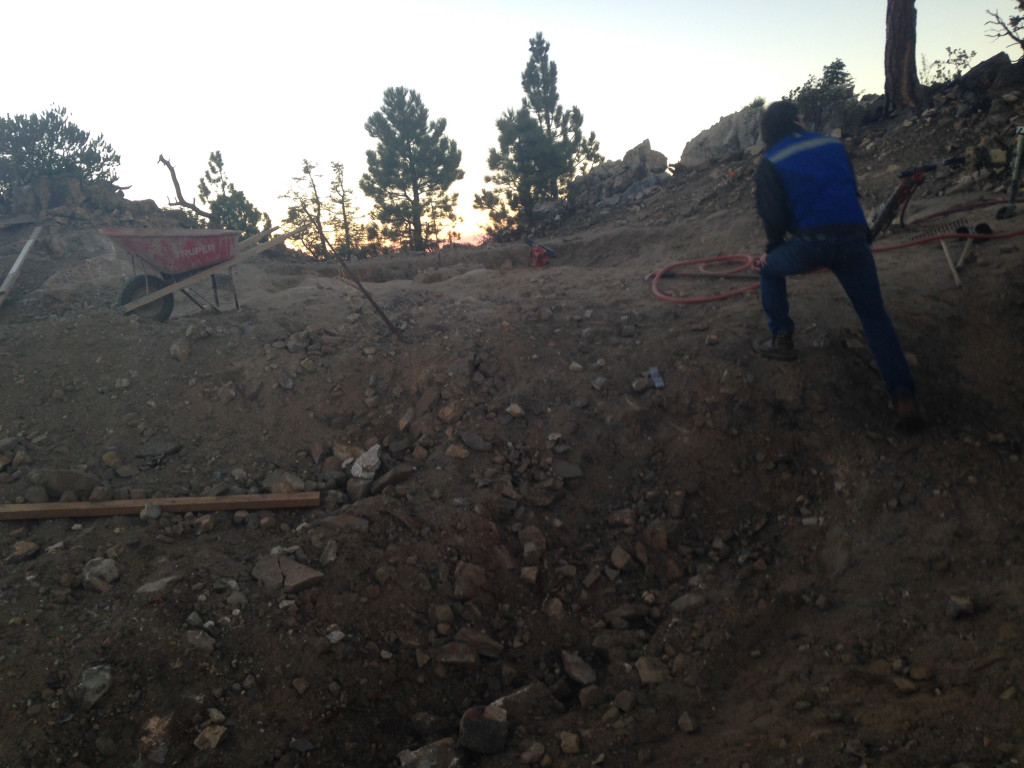

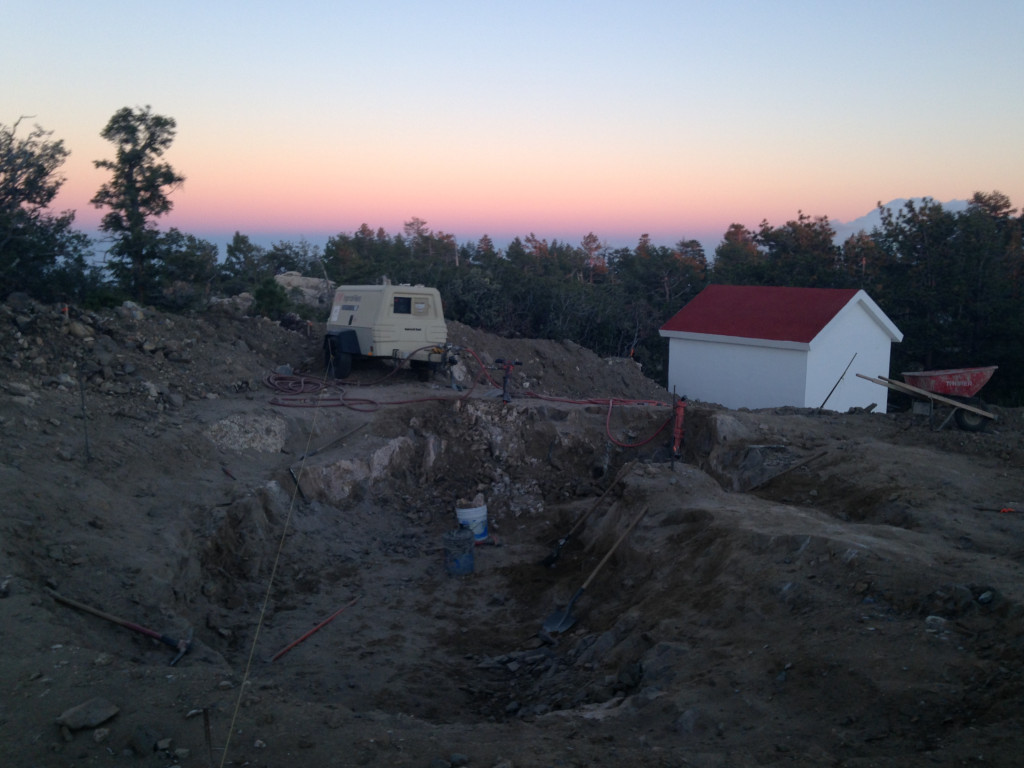

2014/10/20. Digging the pit at site 1.

2014/10/20. Digging the pit at site 1.

2014/10/20. Digging the pit at site 1.

2014/10/21. Opening crate to unload concrete embed pieces.

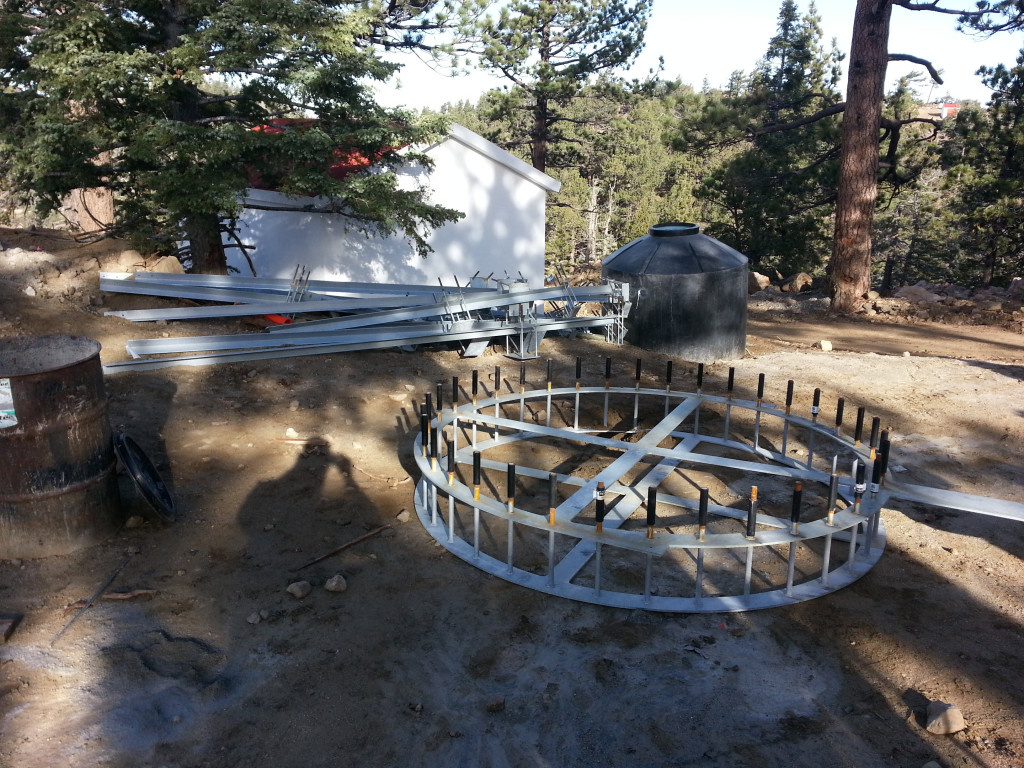

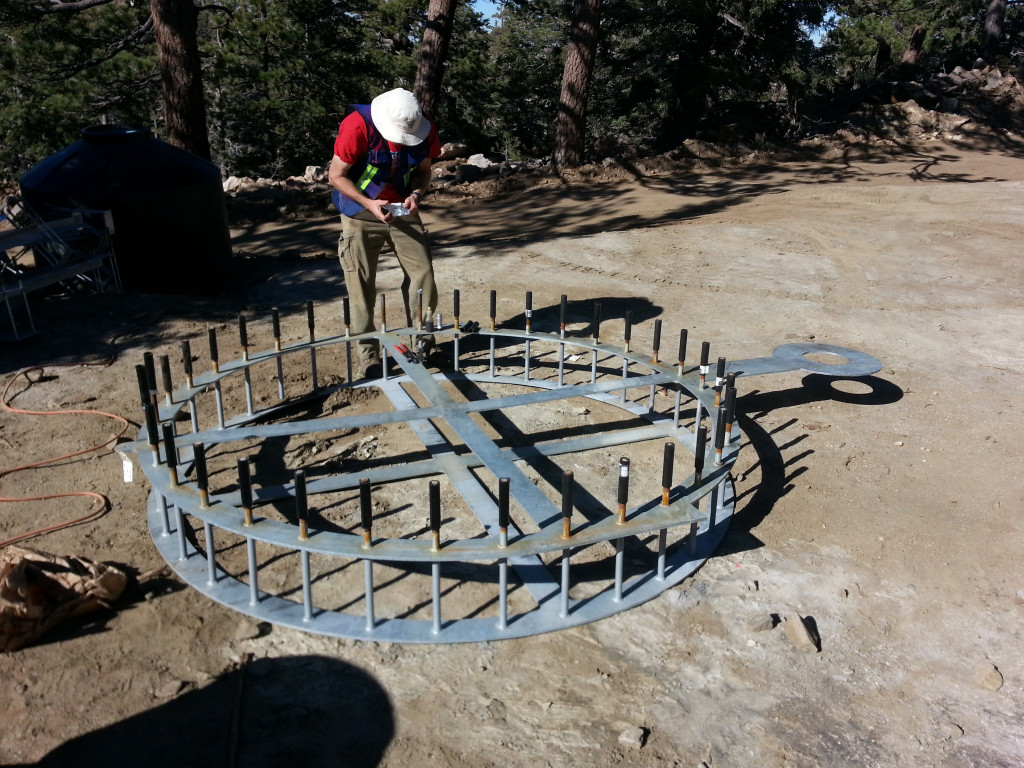

2014/10/21. Part of embed with pier anchor bolts.

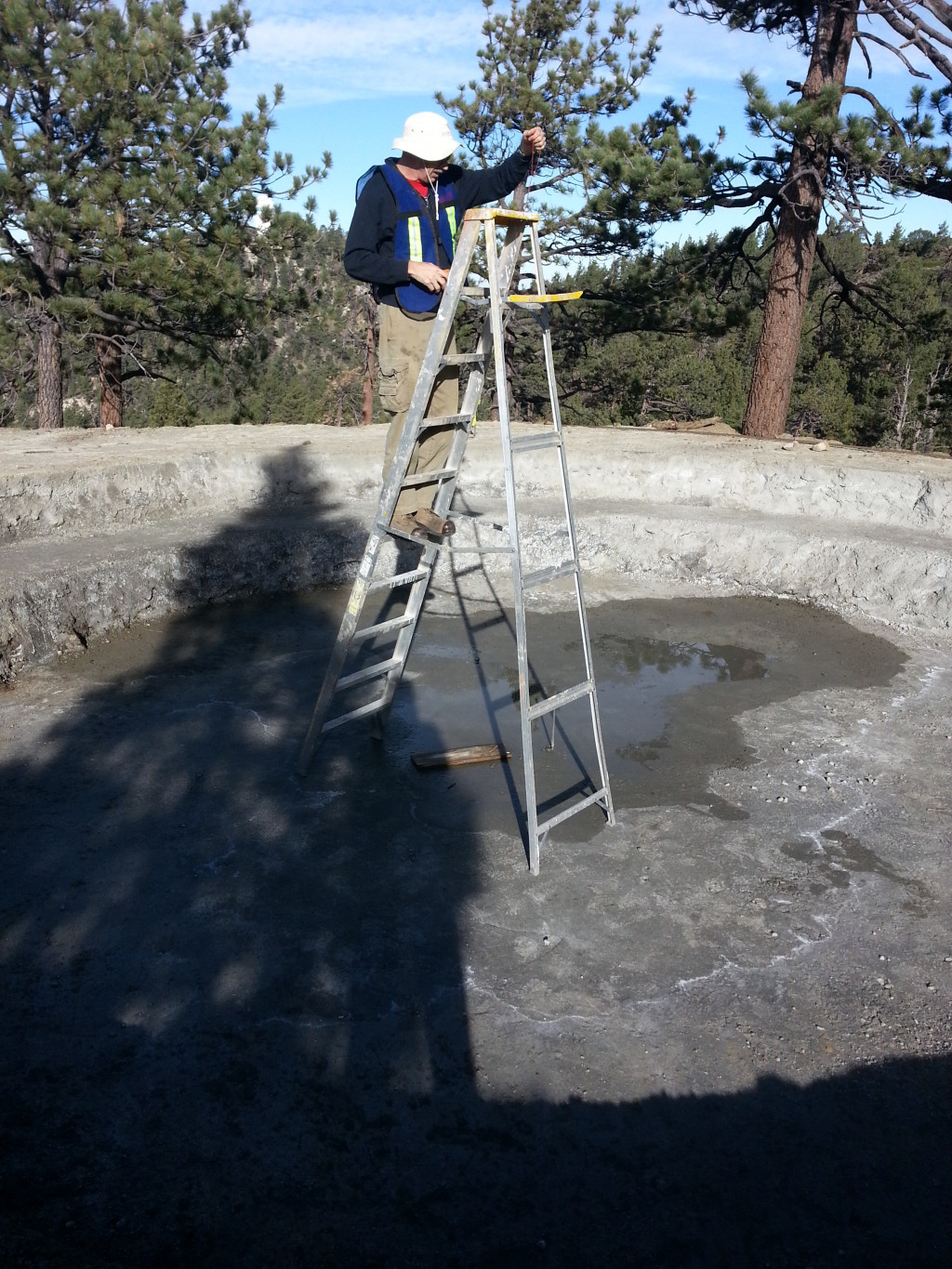

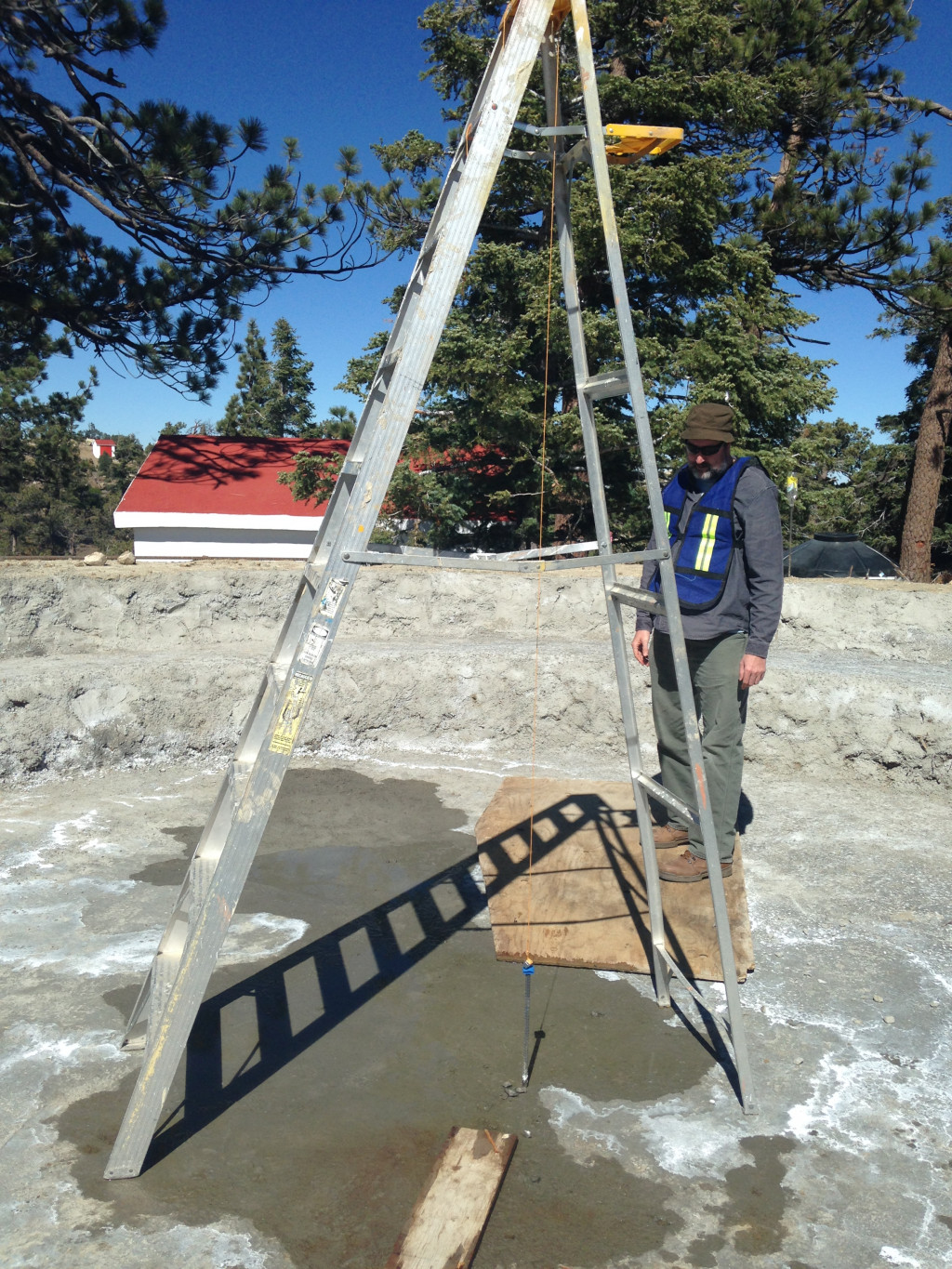

2014/10/21. Hanging a plumb bob from step ladder at site 2 to use shadow of sun to mark celestial north.

2014/10/21. Hanging a plumb bob from step ladder at site 2 to use shadow of sun to mark celestial north.

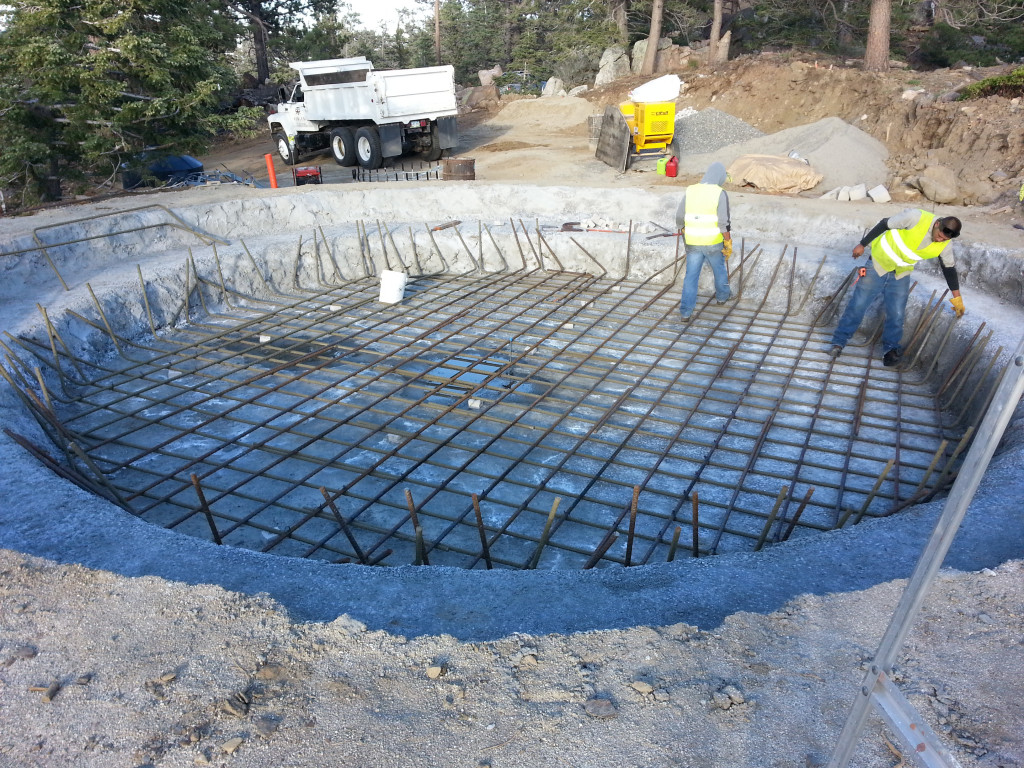

2014/10/21. Starting to install rebar in pit at site 2.

2014/10/21. Part of concrete embed with pier anchor bolts.

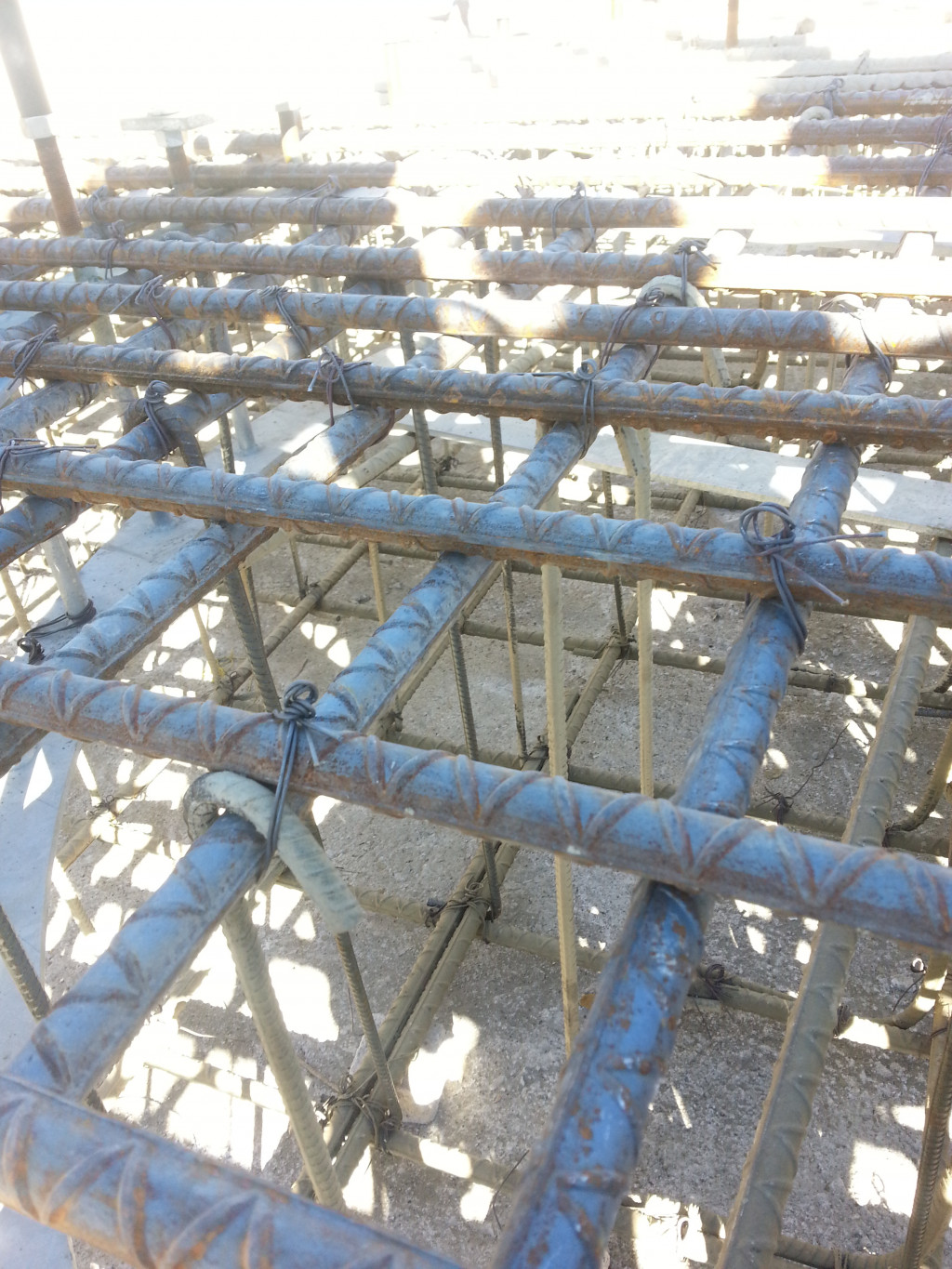

2014/10/21. More rebar in pit at site 2.

2014/10/22. More rebar in pit at site 2.

2014/10/22. More rebar in pit at site 2.

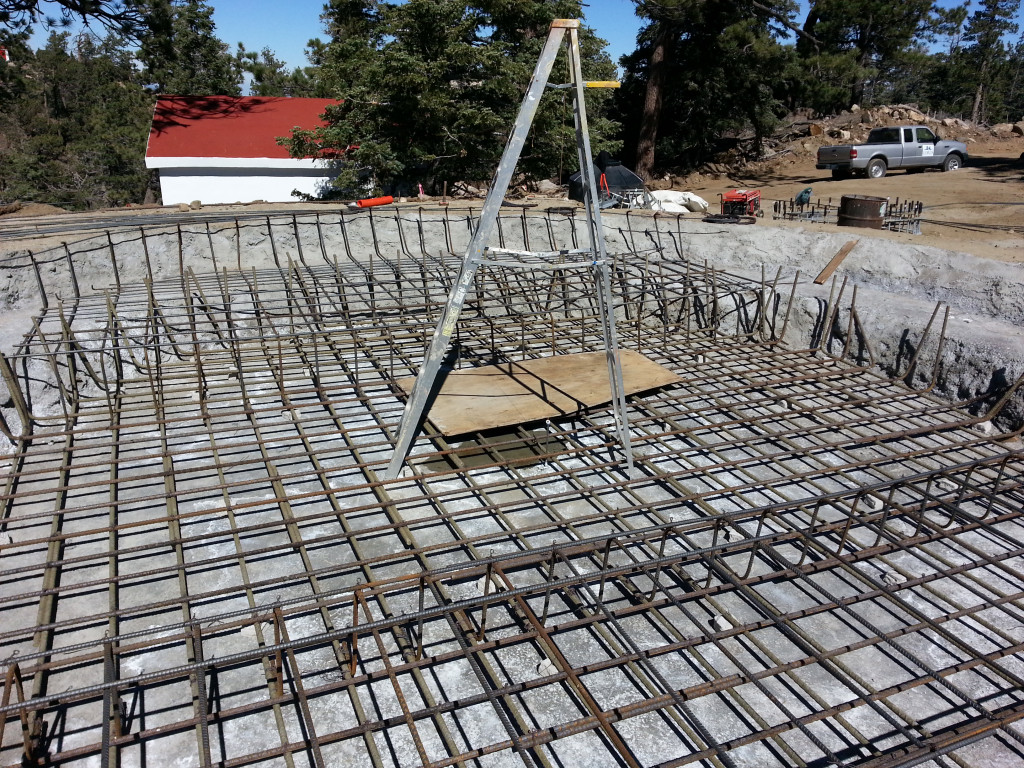

2014/10/22. Double checking celestial north with plumb bob.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Lifting first piece of concrete embed containing pier anchor bolts into place.

2014/10/22. Putting concrete embed piece with column anchor bolts into place.

2014/10/22. Putting concrete embed piece with column anchor bolts into place.

2014/10/23. Concrete embed fixture now assembled.

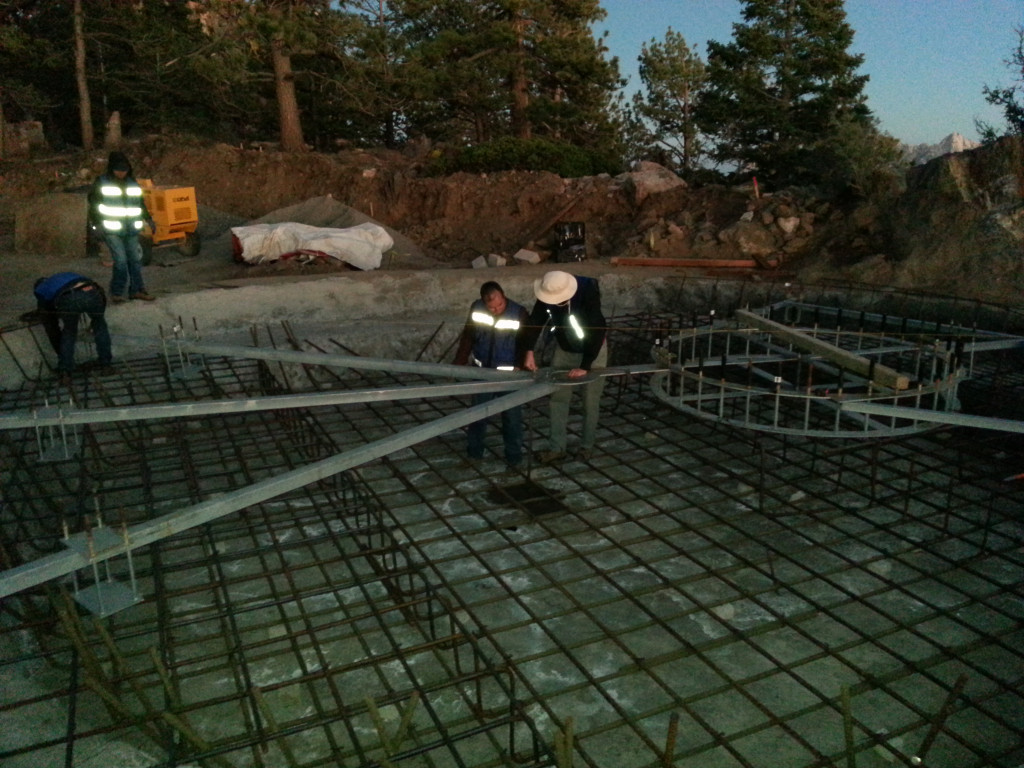

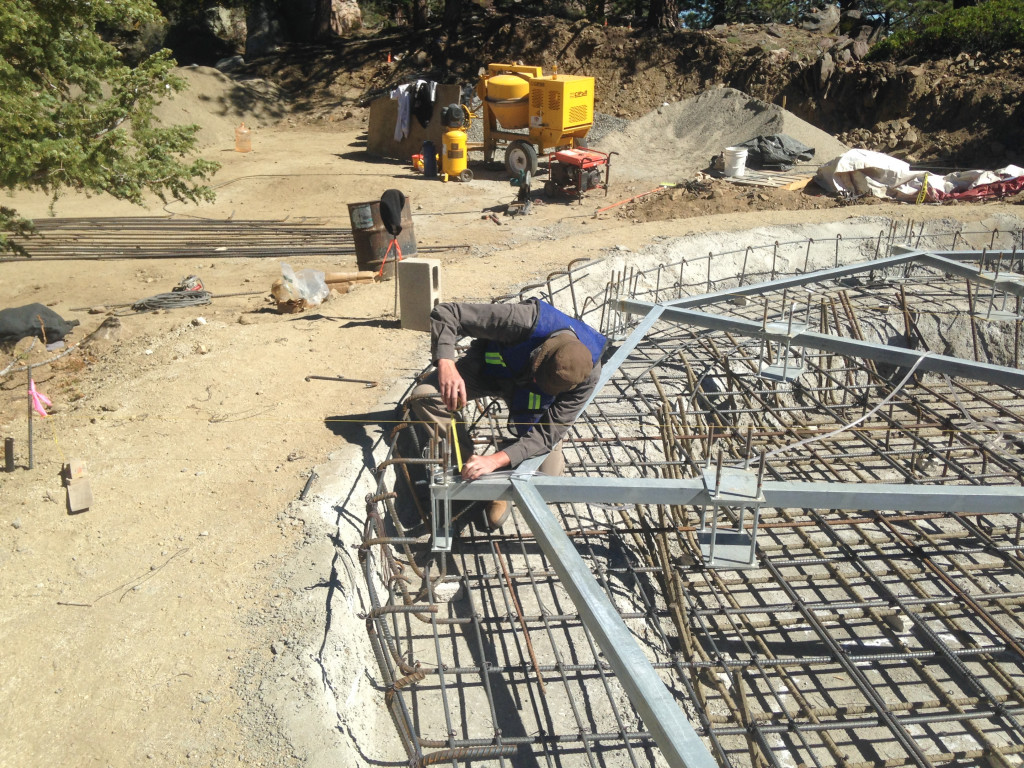

2014/10/23. Leveling concrete embed components to locate anchor bolts correctly.

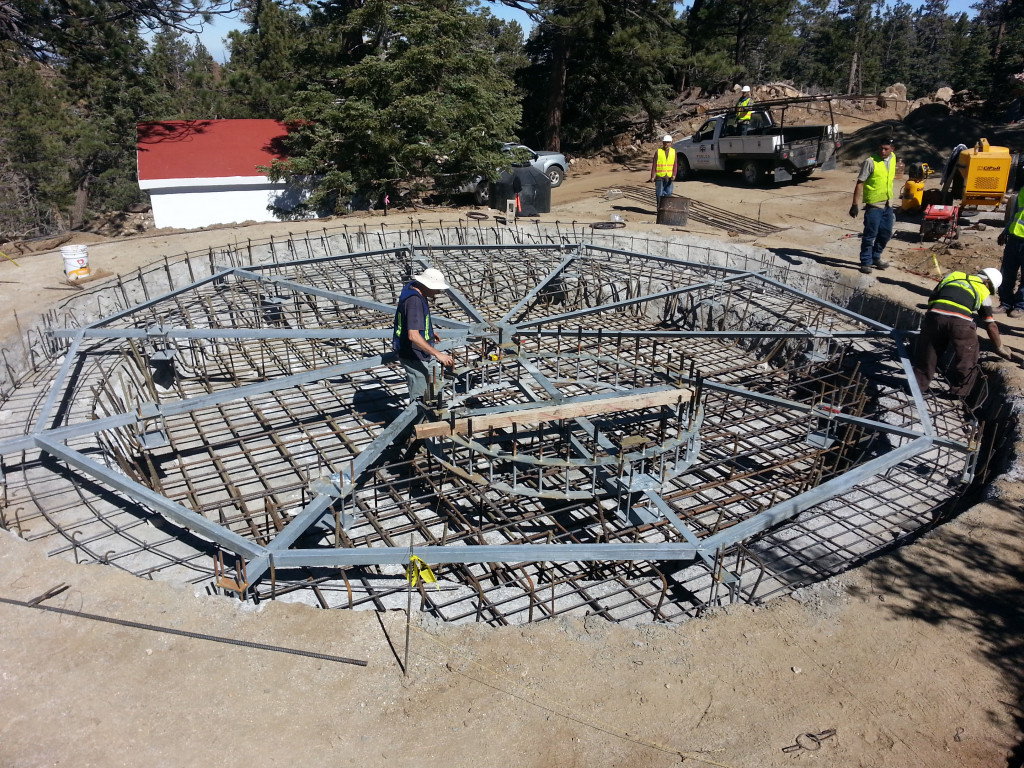

2014/10/23. Leveling concrete embed components to locate anchor bolts correctly.

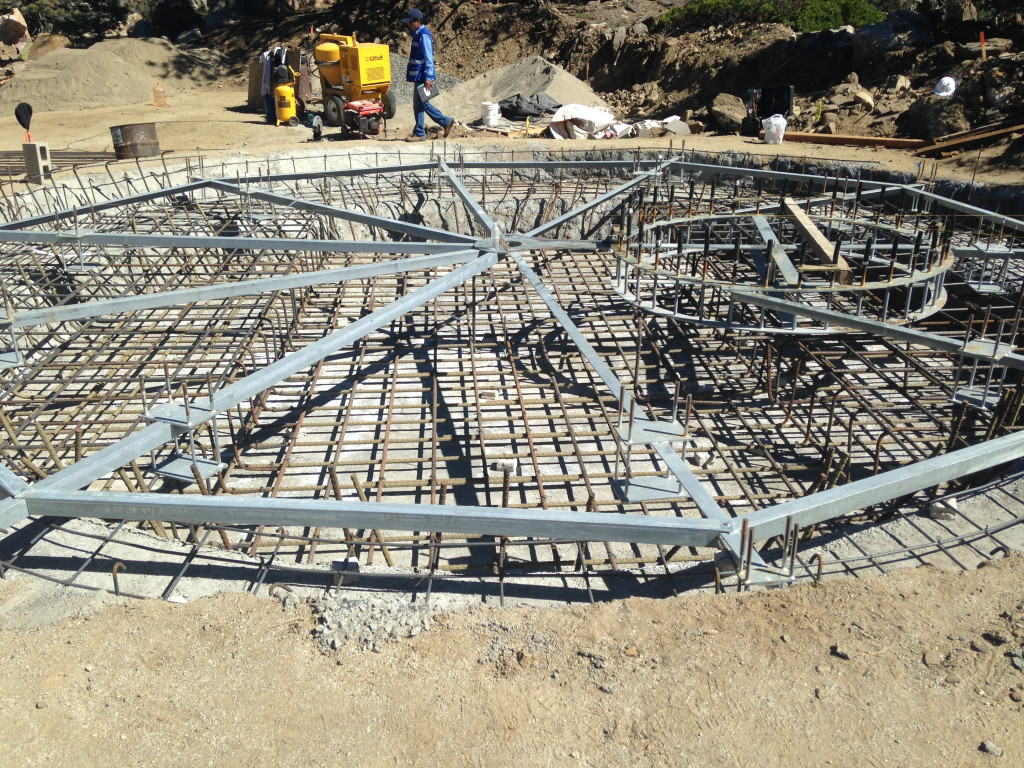

2014/10/23. Concrete embed fixture now leveled.

2014/10/31. More rebar on top of concrete embed.

2014/10/23. More rebar on top of concrete embed.

2014/11/23. Video of concrete pour at site 2. 12 truckloads of concrete were needed to fill the pit.

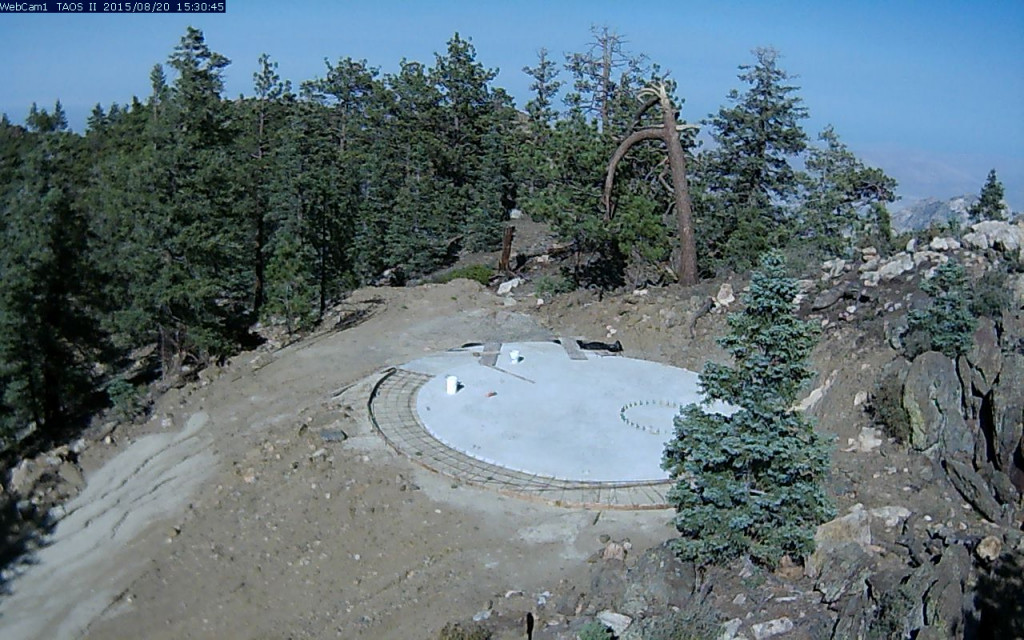

2015/12/01. Foundation at site 1 completed.

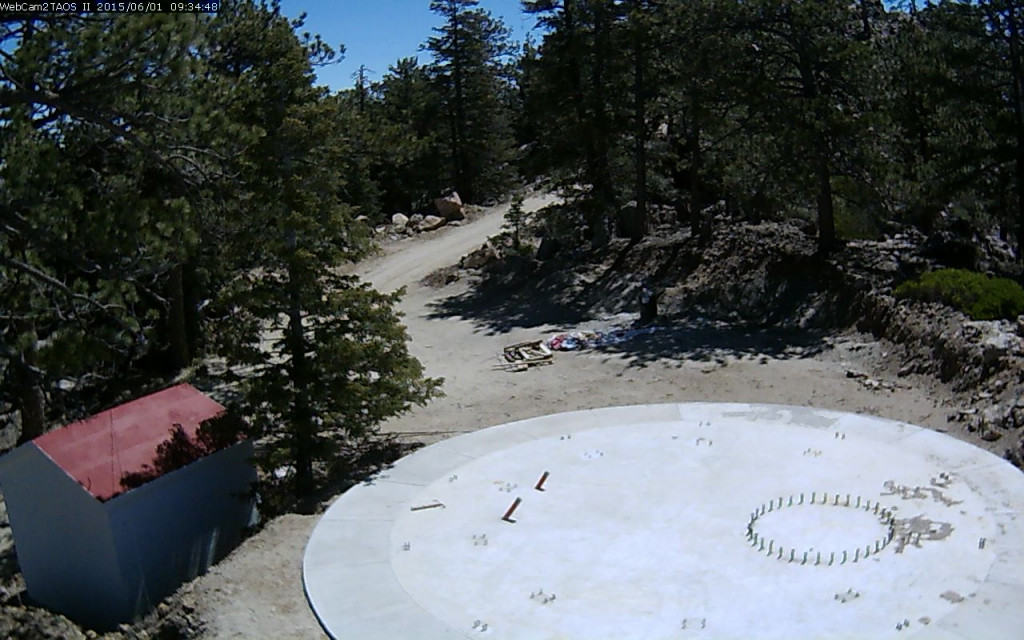

2015/12/01. Foundation at site 2 completed.

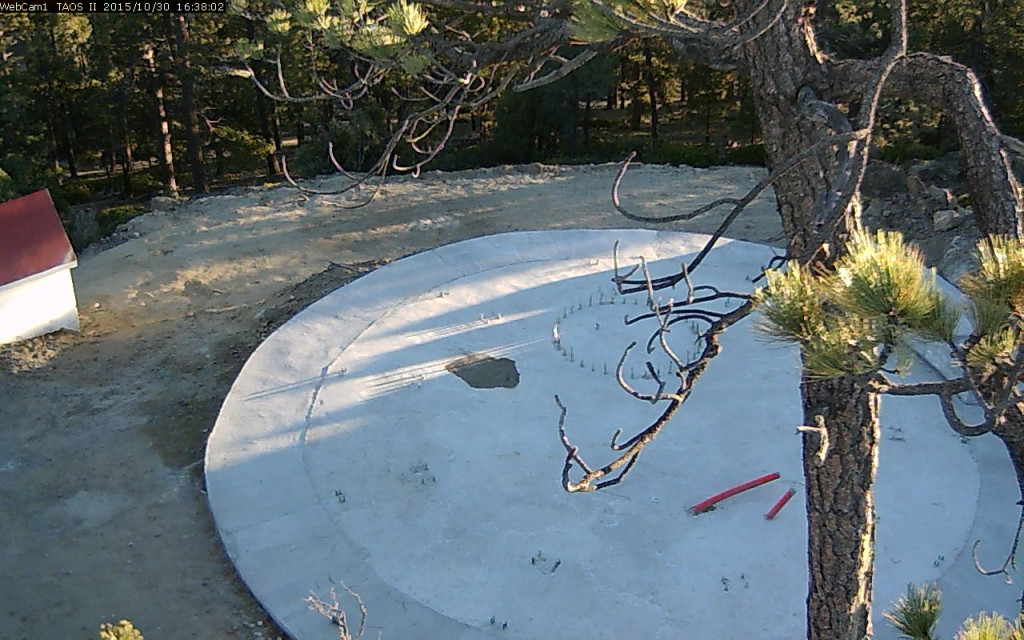

2015/12/01. Foundation at site 3 completed.
